NBN8-12GM50-E2-V1 Non-Contact 8mm Inductive - IP67 Industrial Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
ip67 NBN8-12GM50-E2-V1
,ip67 electronic circuit breaker
,industrial NBN8-12GM50-E2-V1
| Attribute | Value |
|---|---|
| Operating Voltage | 10-30 VDC |
| Ripple | max. 50 µA rms |
| Available Voltage | ≥ 16 V at 20 mA terminals 1+, 3 |
| Switching Function | Normally open (NO) |
| Operating Temperature | -25 to 70 degrees Celsius |
| Input | 0/4 mA ... 20 mA |
| Signal Type | Digital Input |
| Output Signal | 0/4 ... 20 mA (overload > 25 mA) |

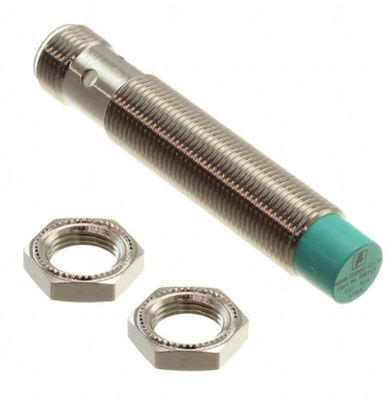

The PEPPERL+FUCHS NBN8-12GM50-E2-V1 is a rugged inductive proximity sensor designed for non-contact detection of metallic objects in demanding industrial environments. Featuring an M12x1 stainless steel housing (IP67-rated), this sensor excels in harsh conditions, including exposure to dust, moisture, vibrations, and temperature extremes (-25°C to +70°C). With an extended detection range of 8 mm for ferrous targets, it provides precise feedback for automation systems requiring reliable object detection. The sensor operates on a 10-30V DC supply and delivers a PNP normally open (NO) output, ensuring seamless integration with PLCs, controllers, and industrial networks. Its robust design and certifications make it ideal for automotive manufacturing, heavy machinery, and hazardous area applications.
- Detection Range: 8 mm (for mild steel targets)
- Output Type: PNP, NO (3-wire, 2 m PVC cable)
- Supply Voltage: 10-30V DC (±10%)
- Current Consumption: ≤15 mA
- Switching Frequency: 1 kHz
- Housing Material: Stainless steel (1.4404/316L)
- Protection Class: IP67 (dust/water resistance)
- Operating Temperature: -25°C to +70°C
- Certifications: CE, cULus, IECEx, ATEX (Ex II 3G Ex nA IIC T6 Gc)
The NBN8-12GM50-E2-V1 is widely used in automotive assembly lines for detecting large metal components like engine blocks or transmission parts. In packaging machinery, it ensures accurate alignment of containers and verifies fill levels. Its ATEX/IECEx certification allows deployment in explosive atmospheres, such as chemical plants and oil refineries, for monitoring valves, pumps, and hazardous-area equipment. Additional applications include position verification in CNC machines, material handling systems, and construction equipment exposed to dust and vibration. The sensor's extended detection range also supports agricultural machinery for monitoring implement positions and logistics systems for pallet presence detection.
- Extended Sensing Range: 8 mm detection capability for larger or distant metallic targets
- Durability: Stainless steel housing resists corrosion, mechanical shocks, and chemical exposure
- Safety Compliance: ATEX/IECEx certification ensures safe operation in Zone 2/22 hazardous areas
- High Immunity: Stable performance in environments with electromagnetic interference (EMI) or temperature fluctuations
- Easy Installation: M12x1 threaded design simplifies mounting in tight spaces
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor (Cylindrical Housing) |
| Model Number | NBN8-12GM50-E2-V1 |
| Detection Principle | Inductive (for metallic objects) |
| Sensing Distance | 12 mm (nominal) |
| Operating Voltage | 10-30 V DC |
| Output Type | PNP, Normally Open (NO) |
| Output Current | ≤ 200 mA |
| Switching Frequency | Up to 1,000 Hz |
| Hysteresis | ≤ 10% of sensing distance |
| Housing Material | Nickel-plated brass (sensing face: PBT plastic) |
| Protection Rating | IP67 (dustproof and waterproof) |
| Ambient Temperature | -25°C to +70°C (-13°F to +158°F) |
| Connection Type | M12 × 1 connector (4-pin) |
| Cable Length | 2 m (integrated PVC cable) |
| LED Indicator | Status LED (yellow) for output state |
| Response Time | ≤ 0.5 ms |
| Certifications | CE, cULus, RoHS, REACH |
| Mounting | Flush or non-flush mounting (adjustable) |
| Object Material | Ferrous metals (e.g., steel, iron) |
| Special Features | Short-circuit protection, Reverse polarity protection, High EMI resistance |
