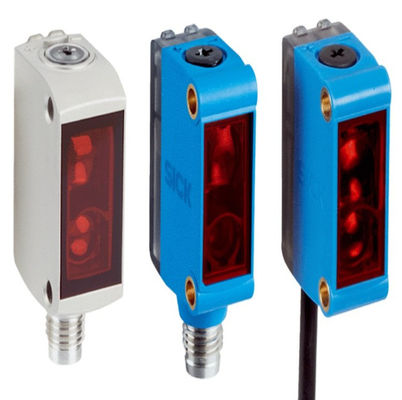

SICK GTE6-P4212 Photoelectric Sensor 5m High Speed IP67 Industrial Harsh
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
Detail Information
Place of Origin
Germany
Brand Name
SICK
Certification
3C
Model Number
GTE6-P4212
Product Type:
Sensor
Condition:
100% Original
Mounting System Type:
Screw-on, 2 Hole Mounting
Tightening Torque:
0.6 Nm
Application:
Industrial Control
Output Current:
≤ 100 MA
Connection Type:
Connector Plug M12 X 1 , 4-pin
Variant:
PRO
Highlight:
High Speed GTE6-P4212 SICK Sensor
,Industrial GTE6-P4212 SICK Sensor
,High Speed SICK GTE6-P4212
Product Description
SICK GTE6-P4212 Photoelectric Sensor 5m High Speed IP67 Industrial Harsh
Product Specifications
| Attribute | Value |
|---|---|
| Product Type | Sensor |
| Condition | 100% Original |
| Mounting System Type | Screw-on, 2 hole mounting |
| Tightening Torque | 0.6 Nm |
| Application | Industrial Control |
| Output Current | ≤ 100 mA |
| Connection Type | Connector plug M12 x 1, 4-pin |
| Variant | PRO |
Product Description
- High-Precision Detection with Energetic Diffuse Technology
The SICK GTE6-P4212 is a miniature photoelectric sensor designed for industrial automation applications requiring reliable object detection within 0-300 mm range. Leveraging energetic diffuse sensing technology, it emits a focused visible red light (650 nm) via a pinpoint LED, ensuring precise detection of objects with varying surface reflectivity. The sensor features a PNP output with light/dark switching capability, allowing flexible integration into PLC systems or machine controls. - Robust Design for Harsh Environments
Built with a nickel-plated brass housing and reinforced metal inserts for M3 threaded mounting, the GTE6-P4212 withstands vibrations up to 10-55 Hz (1 mm) and shocks of 30 g (11 ms). Its -25°C to +55°C operating temperature range and CE/RoHS compliance make it suitable for extreme conditions, including cold storage or high-temperature manufacturing zones. - Versatile Applications in Industrial Automation
The GTE6-P4212 excels in diverse automation tasks, such as material handling, part counting, and presence detection in packaging, automotive, and electronics industries. Its energetic diffuse mode reliably detects glossy or transparent objects, while the background suppression feature ensures immunity to reflective surfaces beyond the sensing range.
Technical Details
| Brand | SICK |
| Model | GTE6-P4212 |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse-Reflective Photoelectric Sensor |
| Sensing Range | ≤ 250 mm |
| Response Time | < 1,250 ms |
| Supply Voltage | 10 V DC … 30 V DC |
| Output Signal | PNP |
| Enclosure Rating | IP67 |
| Housing Material | Plastic (ABS/PC) |
| Connection | Male Connector M8, 4-pin |
| Weight | 20 g |
| Ambient Operating Temperature | -25°C … +55°C |
| Ambient Temperature for Storage | -40°C … +70°C |
| Light Source | Pinpoint LED |
| Type of Light | Visible Red Light |
| Wavelength | 650 nm |
| Light Spot Size | ø 7 mm (at 90 mm distance) |
| Switching Mode | Selectable via Light/Dark Selector (Light/Dark Switching) |
| Switching Frequency | 500 Hz |
| Circuit Protection | VS connections reverse-polarity protected; Inputs and output reverse-polarity protected; Outputs overcurrent and short-circuit protected |
| Items Supplied | Stainless Steel Mounting Bracket (1.4301/304) BEF-W100-A |
