LL3-DB01 Automated SICK Laser Sensor Sick Proximity Sensor High Accuracy
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
LL3-DB01 SICK Laser Sensor
,LL3-DB01 Sick Proximity Sensor
,Automated SICK Laser Sensor
| Attribute | Value |
|---|---|
| Enclosure Rating | IP67 |
| Conductor Size | 0.14 mm² |
| Diameter | 8 mm |
| Operating Temperature | -10°C to +50°C |
| Detection Frequency | 100 Hz |
| Reflective Area | 15 mm x 38 mm |
| Warning Field Range | 49 m (20 m at 20 % reflectivity) |
| Supply Voltage | 12 V DC ... 24 V DC |

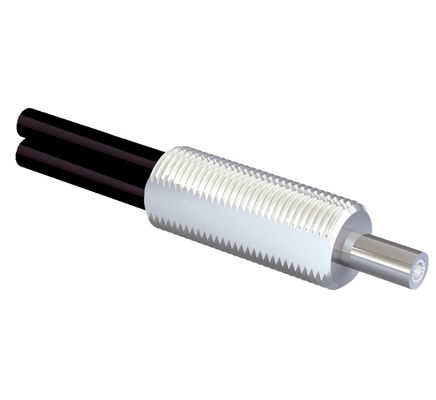

The SICK LL3-DB01 is a fiber-optic cable engineered for industrial automation, offering precise object detection. Compatible with sensors like GLL170(T), WLL180T, and others, it features a coaxial design for accurate switching. Constructed with a polymethylmethacrylat (PMMA) fiber, polyethylen (PE) sheath, and stainless-steel head, it ensures durability. Operating within -40°C to +70°C, it adapts to diverse environments. With an M6 thread, it allows easy installation, making it ideal for applications requiring reliable and precise sensing.
This fiber-optic cable has a 2.2 mm outer diameter at the conduit connection and supports various operating modes, from 16 µs (2 mm) to 8 ms (1,350 mm). Its 25-mm bending radius adds flexibility. Lacking infrared light compatibility (1450 nm), it's tailored for specific light-based tasks. Included in delivery are a mount, 2 x M6 hex nuts, 2 x washers, and an FC fiber-optic cutter (5304141), ensuring convenient setup. The robust material build guarantees stable performance in industrial settings.
In industrial use, the LL3-DB01 excels with high reliability. Its coaxial arrangement ensures precise detection, even for tiny objects. Resilient to harsh conditions due to its wide temperature range and durable materials, it suits assembly lines, material handling, and more. The easy-to-install design, with included mounting accessories, minimizes downtime and boosts productivity. Whether in high-temperature zones or mechanically demanding environments, it delivers consistent, accurate performance.
| Attribute | Details |
|---|---|
| Product Type | Fiber Optic Cable for Industrial Automation |
| Model | LL3-DB01 |
| Compatibility | GLL170(T), WLL180T, WLL24 Ex (fiber optic sensors) |
| Design | Coaxial configuration for precise offset detection |
| Fiber Material | Polymethylmethacrylate (PMMA) core with 1 mm diameter |
| Sheath Material | Polyethylene (PE) for flexibility and durability |
| Fiber Head Material | Nickel-plated brass for corrosion resistance |
| Thread Size | M6 for secure mounting |
| Optical Core Structure | Single transmitting core (S: Ø1 mm) + 16 receiving cores (R: Ø0.25 mm) |
| Bending Radius | 25 mm (minimum) |
| Length | 2,000 mm (customizable via included FC fiber cutter) |
| Operating Temperature | -40°C to +70°C |
| IP Rating | IP67/IP68 (conflicting sources; consult official documentation) |
| Certifications | CE compliant |
| Included Accessories | 2x M6 hex nuts, 2x washers, FC fiber cutter (5304141) |
| Compatibility | Not compatible with 1,450 nm infrared light |
| Applications | Object detection in automotive assembly, packaging, and material handling |
| Special Features | High resistance to vibration and shock |
| Weight | Approximately 150 grams |
| Mounting Type | Flush-mountable with M6 threads |
| Response Time | Dependent on connected sensor (e.g., 8 ms for 1,350 mm detection) |
