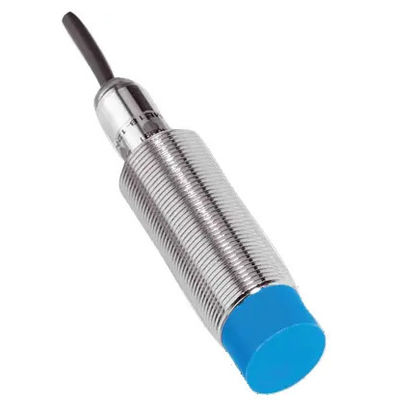

IME18-12NDSZY2S SICK Laser Sensor Inductive Proximity Switch For Industrial Automation
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
IME18-12NDSZY2S Inductive Proximity Switch
,Industrial Inductive Proximity Switch
,IME18-12NDSZY2S SICK Laser Sensor
| Attribute | Value |
|---|---|
| Degree Of Protection | IP67 |
| Connector Material | TPU |
| Jitter | 15 µs |
| Detection Range | 360° |
| Operating Temperature | -10°C to +50°C |
| Output Type | PNP |
| Current Consumption | 30 mA |
| Reference Voltage | ≤ 60 V |
The SICK IME18-12NDSZY2S is an inductive proximity sensor that excels in industrial automation. With a precisely calibrated sensing distance, it can accurately detect metallic objects within its range. Its advanced technology ensures minimal hysteresis and high reproducibility, meaning consistent and reliable performance. The sensor is designed to operate under a wide range of temperatures, from -25°C to +75°C, making it suitable for various industrial environments.
Constructed with a brass, nickel-plated housing and a plastic sensing face, the IME18-12NDSZY2S is built to last. The M18 x 1 thread size and substantial thread length provide secure mounting options. It has a high protection class of IP67, which safeguards it against dust and water immersion. The sensor also features protection against short-circuits, polarity reverse, and power-on pulses, enhancing its durability and reliability in tough industrial settings.
This SICK sensor is a versatile solution for numerous industrial automation tasks. Its DC 3-wire electrical wiring and PNP output type make it easy to integrate into existing control systems. With a switching frequency of 1000 Hz, it can handle high-speed detection requirements. Whether it's in manufacturing lines, logistics operations, or material handling systems, the IME18-12NDSZY2S can effectively contribute to optimizing processes and improving productivity.
| Attribute | Details |
|---|---|
| General Information | |
| Model | IME18-12NDSZY2S |
| Product Name | Inductive Proximity Sensor |
| Manufacturer | SICK |
| Electrical Parameters | |
| Supply Voltage | 10 V DC - 30 V DC |
| Residual Ripple | ≤ 10 % |
| Voltage Drop | ≤ 2 V (at Ia max) |
| On-Time Delay | ≤ 100 ms |
| Switching Frequency | 1,000 Hz |
| Continuous Current Ia | ≤ 200 mA |
| Short-Circuit Protection | Yes |
| Polarity Reverse Protection | Yes |
| Power-On Pulse Protection | Yes |
| Mechanical Parameters | |
| Housing Material | Brass, nickel-plated |
| Material of Sensing Face | Plastic |
| Thread Size | M18 x 1 |
| Diameter | Ø 18 mm |
| Housing Length | 67 mm |
| Thread Length Available | 42 mm |
| Tightening Torque | - |
| Performance Parameters | |
| Sensing Distance Sn | 12 mm |
| Safe Operating Distance Sa | 9.72 mm |
| Installation in Metal | Non-flush (presumably) |
| Hysteresis | 5 % - 15 % |
| Reproducibility | ≤ 2 % |
| Temperature Drift (Sr) | ± 10 % |
| EMC Compatibility | According to EN 60947-5-2 |
| Environmental Parameters | |
| Operating Temperature | -25°C - +75°C |
| Protection Class | IP67 |
| Connection | |
| Connection Type | Cable, 3-core, 2 m |
| Output Function | Normally Open Contact |
| Output Type | PNP |
| Electrical Specification | DC 3-wire |
