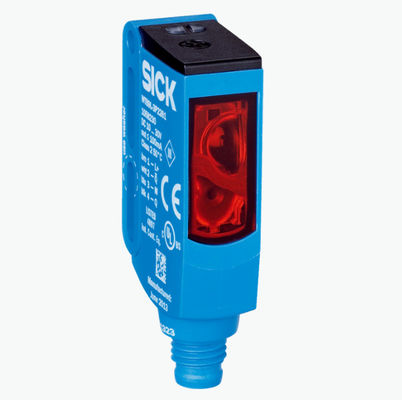

SICK WTB9L-3N2261 IP67 Photoelectric Sensor 25-300mm Versatile Automation
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
IP67 SICK WTB9L-3N2261
,IP67 photoelectric proximity sensor
,Versatile SICK WTB9L-3N2261
| Attribute | Value |
|---|---|
| Connector Material | TPU |
| Type Of Light | Visible red light |
| Jacket Material | PVC |
| Jitter | 15 µs |
| Housing Length | 69.8 mm |
| Connection | M8 x 1 connector, 4-pin |
| Wave Length | 470 nm, 525 nm, 625 nm |
| Height | 40 mm |
The SICK WTB9L-3N2261 is a cutting-edge photoelectric proximity sensor equipped with intelligent background suppression, ensuring reliable object detection even against complex or reflective backgrounds. Using a visible red-light LED (650 nm wavelength), it projects a sharply defined light spot for precise alignment, ideal for detecting small parts (≥3 mm) within its 25-300 mm sensing range.
The sensor's adaptive signal processing minimizes interference from ambient light or textured surfaces, making it suitable for applications like conveyor sorting, packaging inspection, and robotic pick-and-place systems where background variability is common. A 5-turn sensitivity potentiometer allows easy calibration for customized detection requirements, balancing performance and energy efficiency.
Engineered for industrial durability, this sensor features a Vistal™ plastic housing with an IP67/IP69K rating, resisting dust, water jets, and mechanical impacts (IK08). Its compact 9 mm cylindrical form factor enables installation in tight spaces, while the M8 connector ensures quick, secure wiring.
Operating over a wide voltage range (10-30 V DC) with ≤30 mA power consumption, it integrates seamlessly with PLCs and automation controls via its NPN sinking output (switching current ≤100 mA). The sensor maintains stable performance across -25°C to +55°C temperatures, with a response time of ≤0.5 ms and a switching frequency of 1,000 Hz--critical for high-speed production lines. Reverse-polarity and short-circuit protection enhance reliability in harsh electrical environments.
| Attribute | Value |
|---|---|
| Product Type | Photoelectric Proximity Sensor with Background Suppression |
| Model Number | WTB9L-3N2261 |
| Part Number | 1062523 |
| Detection Range | 25-300 mm (object with 90% reflectance) |
| Light Source | Red Laser Diode (650 nm, Class 1) |
| Output Type | NPN Complementary (sinking output) |
| Supply Voltage | 10-30 V DC |
| Current Consumption | ≤30 mA |
| Response Time | ≤0.5 ms |
| Switching Frequency | 1,000 Hz |
| Enclosure Rating | IP66, IP67, IP69K |
| Housing Material | Vistal™ Plastic (rugged and vibration-resistant) |
| Connection Type | M8 4-pin Male Connector |
| Adjustment Method | 5-Turn Potentiometer (sensitivity adjustment) |
| Mounting Options | M3 Hole Pattern |
| Operating Temperature | -10°C to +50°C |
| Certifications | CE, UL, RoHS 3 Compliant |
| Special Features | Background Suppression, SIRIC® Technology (optical/EMI interference reduction), 360° Status LEDs |
| Applications | Industrial automation, conveyor systems, robotic pick-and-place, packaging inspection, automotive assembly |
| Weight | 13 g |
| Warranty | 12 Months |
