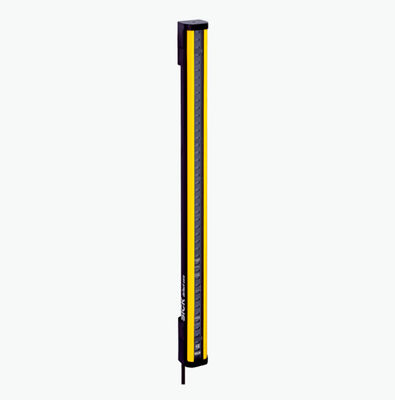

SICK C4C EA18030A10000 IP67 Safety Light Curtain High Accuracy Automation

SICK C4C EA18030A10000 IP67 Safety Light Curtain High Accuracy Automation

MOQ: 1
Price: USD 100-10000/Piece
Standard Packaging: 50*50*50mm
Delivery Period: 3-7
Payment Method: T/T
Supply Capacity: 1/piece in stock
Detail Information
Place of Origin
Germany
Brand Name
SICK
Certification
3C
Model Number
C4C - EA18030A10000
Enclosure Rating:
IP67
Quality:
100% Brand
Signal Type:
PROFIBUS DP
Description:
Rectangular, Screw Connection
Supply Voltage Ub:
10 V DC ... 30 V DC
Aperture Angle:
200°
Switching Output:
PNP
Stationary Position:
–25 °C ... +105 °C
Laser Type:
Class 1
Highlight:

IP67 SICK C4C EA18030A10000

,

High Accuracy SICK C4C EA18030A10000

,

IP67 Safety Light Curtain

Product Description
SICK C4C EA18030A10000 IP67 Safety Light Curtain High Accuracy Automation
Key Specifications
Attribute Value
Enclosure Rating IP67
Quality 100% Brand
Signal Type PROFIBUS DP
Description Rectangular, screw connection
Supply Voltage Ub 10 V DC ... 30 V DC
Aperture Angle 200°
Switching Output PNP
Stationary Position –25 °C ... +105 °C
Laser Type Class 1
High-Level Safety Certification

The SICK C4C - EA18030A10000 is a top-tier industrial automation product designed with safety as a priority. It meets Type 4 (IEC 61496 - 1) safety standards, ensuring reliable protection in hazardous environments. With a Safety Integrity Level of SIL3 (IEC 61508) and Performance Level PL e (ISO 13849 - 1), it guarantees high-reliability operation. These certifications make it ideal for applications where safety is critical, such as in heavy machinery and automated production lines.

Precise Technical Specifications

This product boasts a resolution of 30 mm, allowing for accurate detection of objects within its range. The sensing range extends up to 15 meters, providing extensive coverage for large-scale industrial setups. The protection area height of 1800 mm ensures comprehensive safeguarding of significant vertical spaces.

  • Product Type: Safety light curtain (Receiver unit) with Type 4 protection
  • Functional Principle: Active optoelectronic protection with 30 mm resolution
  • Safety Standards: Type 4 (IEC 61496-1), SIL 3 (IEC 61508), PL e (ISO 13849-1)
  • Sensing Range: 0.3 m to 15 m (adjustable via configuration)
  • Protective Field Height: 1,800 mm
  • Resolution: 30 mm (detects objects ≥30 mm in diameter)
  • Response Time: ≤13 ms (IEC 61496-1 compliant)
  • Output Type: 2 PNP semiconductor outputs (OSSD) with short-circuit protection
  • Supply Voltage: 24 V DC (19.2-28.8 V DC)
  • Power Consumption: ≤1.63 W (DC)
  • Connection Type: M12 male connector (5-pin)
Robust Environmental and Mechanical Design

Built to withstand harsh conditions, the C4C - EA18030A10000 has an enclosure rating of IP65/IP67, protecting against dust and water immersion. Its operating temperature range of -30 °C to +55 °C ensures functionality in diverse environmental conditions.

  • Housing Material: Aluminum extruded profile with PC plastic cover
  • Ambient Temperature: -30°C to +55°C (operating); -40°C to +70°C (storage)
  • Environmental Resistance: Vibration: 5 g (10-55 Hz); Shock: 10 g (16 ms)
  • Certifications: CE, TÜV, UL, RoHS, GB (China Compulsory Certification)
  • LED Indicators: 360° visible status LEDs for power, fault, and safety output signals
  • Mounting Options: 270° rotatable bracket system for flexible installation
  • Adjustments: Automatic calibration of protective field width up to 10 m
  • Typical Applications: Machine safeguarding, robotics, automotive assembly, and material handling
