SICK IME12-04BNSZC0S | M12/4mm/PNP/IP67 | Industrialn
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
pnp sick laser sensor
,ip68 sick laser sensor
,IP67 SICK IME12-04BNSZC0S
| Attribute | Value |
|---|---|
| Wave Length | 660 nm |
| Operating Temperature | -10°C to +50°C |
| Diameter | Ø 18 mm |
| Degree Of Protection | IP68 / IP69K |
| Sensing Distance | ≤ 12.5 mm |
| Mounting Options | Flush or Non-Flush |
| Front Screen Material | Plastic (PA 66) |
| Warning Field Range | 49 m (20 m at 20% reflectivity) |

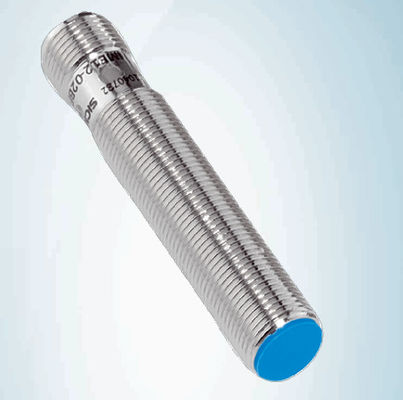

The SICK IME12-04BNSZC0S is an inductive proximity sensor renowned for its accurate detection. With a sensing distance of 4 mm, it can precisely identify the presence of metal objects in industrial settings. Whether detecting parts on a conveyor belt or monitoring machinery component positions, its high precision ensures seamless operations. The 2000 Hz switching frequency enables rapid response, making it suitable for high-speed production lines where quick and accurate detection is crucial.
This sensor features a cylindrical, nickel-plated metal housing with a standard M12 x 1 thread size. The robust construction provides secure installation and excellent protection against harsh industrial environments. Rated IP67, it withstands vibrations, shocks, and temperature variations. The 65-mm housing length and 48-mm thread length contribute to its durability and ease of integration into various industrial setups.
Equipped with a male M12, 4-pin connector, the IME12-04BNSZC0S allows for easy connection in industrial wiring systems. It operates on a DC 3-wire system with a supply voltage ranging from 10-30 V DC, ensuring wide compatibility. The NPN switching output with normally open (NO) function provides reliable signaling for metal object detection, making it ideal for industrial automation control systems.
| Attribute | Details |
|---|---|
| Model | IME12-04BNSZC0S |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Distance | 4 mm (non-ferrous metals: 3.24 mm aluminum, 3.6 mm stainless steel) |
| Mounting Type | Flush (shielded design for metal mounting) |
| Switching Frequency | 2,000 Hz |
| Connection Type | M12 male connector (4-pin, A-coded) |
| Switching Output | NPN (sinking) |
| Output Function | Normally Open (NO) |
| Electrical Wiring | DC 3-wire (brown: +V, blue: GND, black: output) |
| Supply Voltage | 10-30 V DC (reverse polarity protected) |
| Short-Circuit Protection | Yes (self-resetting) |
| EMC Compliance | EN 60947-5-2 |
| Shock/Vibration Resistance | 30 g (11 ms) / 10-55 Hz (1 mm) |
| Housing Material | Nickel-plated brass |
| Sensing Face Material | Plastic (PA 66) |
| Usable Thread Length | 48 mm (M12 x 1 thread) |
| Housing Length | 65 mm |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +75°C |
| Certifications | CE, RoHS |
| Output Current | ≤ 200 mA |
| Tightening Torque | ≤ 12 N*m |
- ASIC chip for ±1% repeatability
- Hot-melt encapsulation for durability
- 2000 Hz switching for high-speed processes
- Shielded design reduces electromagnetic interference
- Conveyor belt monitoring
- Robotics systems
- Automotive assembly lines
- Packaging machinery
