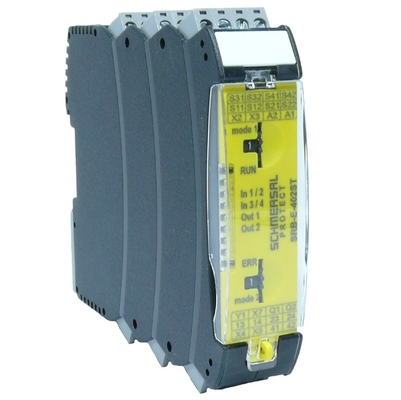

SRB-E-402ST - Emergency Stop Dual-Contact Relay - SS IP65 SIL2 Industrial Safety
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Advanced Multi-Circuit Safety Control Overview
The Schmersal SRB-E-402ST is a high-density safety relay system engineered for complex machinery requiring comprehensive safety monitoring. Featuring a stainless steel base unit (IP67 rated) with 4 independent safety circuits, this DIN-rail mountable solution achieves ISO 13849-1 PL e (Category 4) and IEC 62061 SIL 3 compliance. Each circuit utilizes dual-channel monitoring with force-guided contacts (EN 50205 certified) to ensure failsafe operation. Operating at 24V DC ±10% within -25°C to +60°C, its corrosion-resistant housing withstands oils, vibrations (50g shock resistance), and washdown environments. The integrated OLED diagnostic display provides real-time status visualization for all circuits, while SIL 3 architecture guarantees fault-tolerant performance in automotive assembly lines, robotic cells, and large-scale packaging systems.
2. Critical Performance Specifications
This relay system operates at 24V DC (19.2-28.8V) with 4 isolated dual-channel inputs (S11/S12 to S41/S42) and 8 safety outputs (4× relay 6A @ 250V AC + 4× semiconductor 0.5A). Safety ratings include SIL 3 (PFHD 1.6×10⁻⁹/h) and PL e (DCavg=99%). The 35mm-wide base unit supports up to 6 expansion modules via 500kbps backplane communication. Key metrics include ≤80ms response time per circuit, 4kV electrical isolation between circuits, and IP67/NEMA 4X protection. Diagnostics feature a 2.7" OLED display with 128×64 resolution, event logging (2,000+ entries), and USB/Bluetooth interfaces. Certified to UL 508, IECEx Ex ec IIIC T80°C Dc, and IEC 60947-5-1 standards. Mechanical dimensions: 35×105×121mm (W×H×D).
3. Complex Industrial Applications
This system consolidates safety monitoring for large-scale automation:
- Automotive Body Shops: Coordinated E-stops across 200m conveyor systems with weld cell guarding
- Food Processing Plants: Hygienic guard monitoring for multi-zone packaging lines with CIP washdown
- Pharmaceutical Facilities: GMP-compliant isolator gloveport/hatch security in cleanrooms
- Robotic Assembly Lines: Synchronized safety zones for 10+ collaborative robot workcells
- Plastic Extrusion: Hydraulic safety, die guard, and conveyor interlocks
- Material Handling AS/RS: Integrated light curtains, safety mats, and E-stops for automated cranes
- Power Generation: Turbine hall access control with SIL 3 redundancy
- Metal Stamping Presses: Multi-press emergency stop cascading with guard lock monitoring
Its modular design replaces 12+ conventional relays while maintaining SIL 3 separation between processes.
4. Operational Excellence Advantages
- Centralized Safety Management: 80% wiring reduction versus discrete relays with hot-swappable modules
- Predictive Diagnostics: OLED display shows real-time circuit health and fault history timelines
- Flexible Logic Configuration: AND/OR gating per circuit with 0.1-60s programmable delays
- Cybersecurity Integration: Password protection and encrypted firmware updates
- Cross-Circuit Isolation: Physical separation prevents fault propagation between safety zones
- Installation Efficiency: Push-in spring terminals (0.25-2.5mm²) and pre-fabricated wiring harnesses
- Compliance Optimization: Pre-validated templates for EN ISO 13850 and ANSI/RIA R15.06
- Lifecycle Durability: >500,000 mechanical operations with gold-plated backplane contacts
5. Safety Architecture & Diagnostics
Multi-Circuit Monitoring Protocol:
- Redundant Validation:
- Dual processors cross-verify inputs within 3ms tolerance
- Automatic channel synchronization during signal drift
- Startup Self-Test:
- Validates contact separation (>0.5mm) and RAM integrity
- Checks backplane communication integrity
- Fault-Response Hierarchy:
Fault Type Response Time System Action Contact welding ≤50ms Force all affected circuits open Input discrepancy ≤60ms Isolate specific circuit Undervoltage (<18V DC) ≤20ms Global shutdown Backplane failure ≤5ms Activate fail-safe semiconductors - Diagnostic Visualization:
- Green Checkmark: Circuit operational
- Yellow Triangle: Warning (misalignment/reset required)
- Red Exclamation: Critical fault (manual reset needed)
- Blue Gear: Configuration mode active
- Reset Sequences:
- Staggered circuit restart with configurable delay (0-30s)
- RFID-enabled key reset for audited access control
Safety Output Configuration:
- Relay Outputs (K1-K8): Power contactors for machine enable
- Semiconductor Outputs (OUT1-OUT4): Diagnostic signaling to PLC
- Auxiliary Contacts: Remote reset and external alarm triggering
| Parameter | Specification/Value |
|---|---|
| Product Type | High-Current Emergency Stop Switch (Twist Release) |
| Series | SRB-E Industrial Series |
| Actuator Design | Ø 60 mm Mushroom Head Red (RAL 3000) with ISO-compliant yellow base ring |
| Contact Configuration | 2 NC (Safety) + 2 NC/2 NO (Auxiliary) • Safety: Terminals 13-14, 21-22 • Auxiliary: 31-32/41-42 (NC), 51-52/61-62 (NO) |
| Safety Level | Cat. 4 / PL e (EN ISO 13849-1) Stop Category 0 (IEC 60204-1) |
| Protection Rating | IP69K (Frontal steam/jet cleaning) IP66 (Housing rear) |
| Electrical Ratings | • Voltage: 24–600V AC/DC • Current: 15A AC-15 / 8A DC-13 • Breaking Capacity: 5000 VA / 300 W |
| Mechanical Life | ≥ 2,000,000 cycles (No load) |
| Electrical Life | 200,000 cycles (At 10A AC) |
| Actuation Force | ≥ 150 N (Heavy-duty industrial requirement) |
| Reset Mechanism | Key-operated Twist Release Stainless steel anti-tamper collar |
| Housing Material | Zinc Die-Cast (ZM 040) Epoxy-powder coated (RAL 7035 Grey) |
| Contact Material | AgSnO₂ (Silver Tin Oxide) High-breaking capacity alloy |
| Terminal Connection | Dual Screw Clamps per Contact Max. wire: 4.0 mm² Torque: 1.2–1.5 Nm |
| Operating Environment | Temp: -30°C to +80°C Humidity: ≤ 95% RH |
| Impact Resistance | IK10 (20J impact per EN 62262) |
| Mounting | Panel Cutout: Ø 30 mm Depth: 84 mm |
| Safety Features | • Positive Opening (≥5mm gap) • Dual-channel redundancy with cross-monitoring |
| Certifications | CE, UL 508, CSA, TÜV, ATEX II 3G Ex nc IIC T80°C, IECEx, EAC |
| Compliance Standards | EN/IEC 60947-5-1, ISO 13850, ANSI B11.19, NFPA 79, IECEx IEC 60079-15 |
| Vibration Resistance | 5–150 Hz (1.5mm amplitude) per EN 60068-2-6 |
