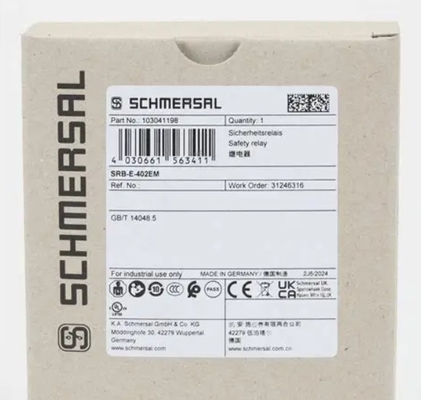

SRB-E-402EM - Emergency Stop Dual-Contact Relay - SS IP65 SIL2 Industrial Safety
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Modular Safety Control Platform Overview
The Schmersal SRB-E-402EM is an expandable safety relay system engineered for complex industrial safety architectures requiring multi-circuit monitoring and diagnostics. Featuring a stainless steel IP67-rated base unit, this platform supports up to 8 expansion modules via a rugged backplane bus. Compliant with ISO 13849-1 PL e (Category 4) and IEC 62061 SIL 3, its modular design consolidates monitoring for E-stops, light curtains, guard locks, and safety scanners. The integrated 2.8" TFT color touchscreen provides real-time diagnostics with intuitive navigation, while operating within 24V DC ±10% at -25°C to +60°C. Built for demanding environments like automotive assembly and pharmaceutical plants, it withstands oils, vibrations (50g IEC 60068-2-27), and high-pressure washdowns while maintaining SIL 3 integrity across all channels.
2. Core Technical Specifications
- Safety Ratings: SIL 3 (PFHD: 1.4×10⁻⁹/h), PL e (DCavg=99.3%)
- Electrical:
- Supply Voltage: 24V DC (19.2–28.8V)
- Base I/O: 4 dual-channel inputs + 8 safety outputs (4× 6A relays + 4× 0.5A semiconductors)
- Expandability: 8 slots for EM series modules (e.g., EMG-01 guard monitoring)
- Communication: PROFIsafe/Fail-safe over EtherCAT (FSoE) via expansion card
- Environmental: IP67 base / IP20 modules, 4kV inter-circuit isolation
- Diagnostics: 2.8" TFT (320×240 px) with waveform visualization, 5,000-event log
- Mechanical: 70×125×130mm base dimensions, TH35 DIN rail mounting
- Certifications: UL 508, IECEx Ex ec IIIC T80°C Dc, DNV-GL Marine
3. Industrial Applications
This system manages safety across high-risk processes:
- Automotive Body Shops: Coordinated E-stops across 300m conveyors with 50+ safety doors
- Robotic Welding Cells: Multi-zone monitoring with light curtain muting protocols
- Pharmaceutical Facilities: Hygienic guard locking in cleanrooms requiring GMP compliance
- Packaging Lines: Synchronized safety for filler/capper/labeler modules with CIP washdown
- Power Substations: HV cabinet access control with authorization levels
- Plastic Injection: Hydraulic safety + mold guard interlocking in one system
- Material Handling: AS/RS crane safety integrating light grids and floor scanners
- Metal Stamping: Cascaded E-stop networks across press transfer lines
4. Functional Advantages
- Centralized Safety Management:
- 85% panel space reduction vs. discrete relays
- Live system diagnostics with color-coded TFT alerts
- Seamless Integration:
- Pre-configured modules for guard doors (EMG-01), muting (EMG-03)
- PROFIsafe integration for Siemens/Phoenix Contact PLCs
- Predictive Maintenance:
- Contact cycle counters with wear prediction
- Real-time current draw monitoring per circuit
- Rapid Troubleshooting:
- On-screen wiring diagrams for fault locations
- QR code generation for service documentation
- Flexible Configuration:
- Logic editor supports AND/OR/Time delays (0.01–999s)
- User permissions with RFID access control
- Lifecycle Durability:
- Gold-plated backplane contacts (>250k insertions)
- Conformal coated PCBs for humidity resistance
5. Safety Architecture & Operation
Multi-Layer Safety Sequencing:
- Input Validation:
- Dual-channel cross-monitoring with <2ms discrepancy detection
- Automatic sensor debouncing for vibration-prone environments
- Expansion Control:
- Backplane handshaking verifies module integrity every 10ms
- Hot-swap protocol maintains SIL 3 during replacements
- Output Management:
- Force-guided relays with physical NO/NC monitoring
- Semiconductor outputs signal diagnostics via PWM
- PROFIsafe Integration:
- Safety Telegram monitoring with 15ms cycle times
- SafeNode parameterization via TIAPortal
- Diagnostic Management:
TFT Display Indication Green Background All circuits operational Yellow Waveform Intermittent signal fault Red Flashing Border Critical safety fault Blue Lock Icon Authorization required - Event replay function reconstructs pre-fault sequences
Startup Self-Test Routine:
- Contact gap verification (≥0.5mm)
- Processor/RAM checksum validation
- Expansion module enumeration check
- Fieldbus communication diagnostic scan
| Parameter | Specification/Value |
|---|---|
| Product Type | ATEX/IECEx Certified Emergency Stop (Twist Release) |
| Series | SRB-E Ex-Protected Series |
| Actuator Design | Ø 60 mm Mushroom Head Red (RAL 3000) with laser-etched ⚠️ symbol |
| Contact Configuration | 2 NC (Safety) + 1 NC/1 NO (Aux) • Safety: Terminals 13-14, 21-22 • Auxiliary: 31-32 (NC), 41-42 (NO) |
| Explosion Protection | ATEX: II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db |
| Safety Level | Cat. 4 / PL e (EN ISO 13849-1) Stop Category 0 (IEC 60204-1) |
| Protection Rating | IP66/IP68 (Frontal) IP65 (Cable entry) |
| Electrical Ratings | • Voltage: 24–250V AC/DC (Ex-rated) • Current: 10A AC-15 / 6A DC-13 (Ex derated) • Max. Power: 2500 VA (gas) / 100W (dust) |
| Mechanical Life | ≥ 1,500,000 cycles |
| Electrical Life | 100,000 cycles (at 6A AC) |
| Actuation Force | ≥ 150 N (Explosion-proof mechanism) |
| Reset Mechanism | Stainless Steel Key-operated Twist Release Integrated torque limiter |
| Housing Material | Stainless Steel (316L) Electropolished surface |
| Contact Chamber | Hermetically Sealed Glass-metal feedthroughs |
| Terminal Connection | Ex-e Increased Safety Terminal Chamber Max. wire: 2.5 mm² Torque: 0.6–0.8 Nm |
| Operating Temperature | -20°C to +60°C (Gas) -40°C to +75°C (Dust) |
| Surface Temperature | T6 Rating (≤85°C under fault) |
| Mounting | Flameproof Joint (Ex db) Panel Cutout: Ø 30 mm Depth: 92 mm |
| Certifications | ATEX, IECEx, UKEX, EAC Ex, INMETRO, UL HazLoc, cCSAus |
| Compliance Standards | EN 60079-0/1/7/31, IEC 60079-11, EN/IEC 60947-5-1 |
| Safety Features | • Triple-sealed shaft penetration • Pressure-resistant chamber (1.5x design pressure) |
