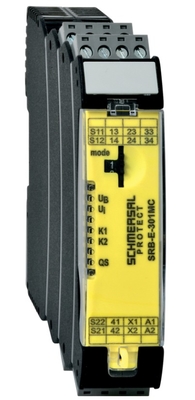

SRB-E-301MC - Emergency Stop + Mechanical Interlock - SS IP65 SIL3 Safety Relay
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Product Overview
The Schmersal SRB-E-301MC is an advanced modular safety relay system engineered for complex machine safety applications requiring SIL 3/PL e performance. Featuring a stainless steel base unit (IP67 rated) with MC (Modular Configuration) capability, this system supports up to 5 expansion modules for monitoring E-stops, light curtains, safety mats, and guard doors. Certified to ISO 13849-1 PL e (Category 4) and IEC 62061 SIL 3, it operates at 24V DC with dual-channel diagnostics and force-guided contacts. The unit integrates tri-color LED status indicators and provides OBD (Open Board Diagnostics) via USB for real-time troubleshooting. Designed for harsh industrial environments (-25°C to +60°C), its corrosion-resistant housing withstands oils, vibrations, and high humidity, making it ideal for automotive, robotics, and heavy machinery safety systems.
2. Key Technical Parameters
- Safety Ratings:
- SIL 3 (IEC 62061, PFHD: 1.8×10⁻⁹/h)
- PL e (ISO 13849-1 Cat. 4, DCavg=99%)
- Electrical Specifications:
- Voltage: 24V DC ±10% (19.2-28.8V)
- Safety Outputs: 3× semiconductor (2A) + 2× relay (6A)
- Inputs: 4 dual-channel (S11/S12 to S41/S42)
- Response Time: ≤100ms (safety shutdown)
- Expandability:
- 5 module slots (e.g., EMG-01 for guard monitoring)
- Backplane communication: 500kbps
- Environmental:
- IP67 (base unit), IP20 (expansion modules)
- Shock: 50g (IEC 60068-2-27)
- Diagnostics:
- 3.5" TFT display (optional)
- USB interface for event logging
- Certifications:
- UL 508, CSA C22.2 No. 14
- DNV-GL marine approval
3. Primary Applications
This relay system safeguards critical processes:
- Automotive Press Lines: Cascaded E-stop monitoring across 200m lines
- Robotic Workcells: Coordinated safety zones for multi-robot systems
- Packaging Machinery: Integrated safety for filler/capper/case packer modules
- Pharmaceutical Lines: GMP-compliant isolator and gloveport monitoring
- Material Handling: AS/RS crane safety with light curtain synchronization
- Plastic Extrusion: Guard locking for die face cutters
- Energy Substations: Access control for HV cabinets
- Food Processing: Hygienic safety circuit consolidation
Its modular design reduces wiring by 60% compared to discrete relays while providing centralized diagnostics for complex safety architectures.
4. Functional Advantages
- Centralized Safety Management:
- Single unit replaces 8+ conventional relays
- Cross-monitoring between modules
- Diagnostic Intelligence:
- Event log stores 5,000+ faults with timestamps
- Real-time OBD via USB/Bluetooth (optional)
- Installation Efficiency:
- Plug-and-play expansion modules
- Pre-fabricated harnesses reduce wiring time
- Safety Flexibility:
- Configurable as AND/OR logic gates
- Timed functions (0.1-30s) for guard locking
- Durability Features:
- Gold-plated backplane contacts
- Vibration-resistant DIN rail clamps
- Compliance Optimization:
- Pre-validated SIL 3 templates
- Automatic documentation generation
- Lifecycle Benefits:
15-year design life
Hot-swappable modules
5. Safety Operation & Architecture
Core Functionality:
- Dual-Channel Monitoring:
- Continuous comparison of Sx1/Sx2 inputs
- Detects discrepancies >5ms
- Startup Self-Test:
- Validates contact separation (≥0.5mm)
- Checks processor/RAM integrity
- Modular Safety Logic:
- Safety mat input delays (EMG-01 module)
- Light curtain muting (EMG-03 module)
- Fault Response:
- Forces outputs open during faults
- Isolates faulty modules
Diagnostic Indicators:
| LED | Color | Status |
|---|---|---|
| PWR | Green | Power OK |
| RUN | Flashing | System operational |
| ERR | Red | Channel discrepancy |
| OUT1-3 | Yellow | Semiconductor output ON |
| K1-K2 | Green | Relay contacts closed |
| Parameter | Specification/Value |
|---|---|
| Product Type | Heavy-Duty Emergency Stop Switch (Twist Release) |
| Series | SRB-E Metal Clad (MC) Series |
| Actuator Diameter | Ø 60 mm Mushroom Head (Red/Yellow) |
| Contact Configuration | 2 NC (Safety Contacts) + 1 NC/1 NO (Auxiliary) |
| Safety Level | Category 4 / PL e (EN ISO 13849-1) |
| Stop Category | Category 0 (Uncontrolled stop per EN/IEC 60204-1) |
| Enclosure Rating (IP) | IP69K (Front), IP65 (Housing) - Resists high-pressure washdown |
| Rated Operating Voltage (Ue) | 24–240V AC/DC |
| Rated Current (Ie) | 10 A (AC-15), 8 A (DC-13) |
| Electrical Life | 100,000 cycles (at rated load) |
| Mechanical Life | ≥ 1,000,000 cycles |
| Actuation Force | ≥ 100 N (Exceeds ISO 13850 requirements) |
| Release Mechanism | Key-operated Twist Release (Anti-rotation design) |
| Housing Material | Stainless Steel (AISI 304) |
| Actuator Material | Thermoplastic (PA) with stainless steel collar |
| Contact Block | Thermoplastic (PA) with AgCdO contacts |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Screw Clamp Terminals (Max. 2.5 mm²) |
| Mounting Style | Panel Mount (Ø 30 mm Cutout) |
| Shock/Vibration Resistance | 30 g / 10–55 Hz (EN 60068-2-6) |
| Approvals/Certifications | CE, UL 508, CSA C22.2 No.14, TÜV, IECEx, ATEX (Zone 22) |
| Safety Standards | EN/IEC 60947-5-1, EN ISO 13850, EN 60204-1 |
| Contact Separation | Positive Opening (Forced break NC contacts) |
| Shaft Seal | Triple-sealed stainless steel bearing |
