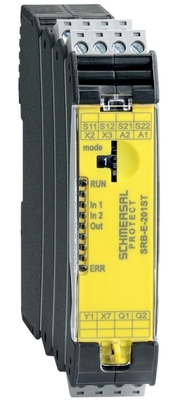

SRB-E-201ST - Emergency Stop + Safety Relay - SS IP65 Industrial Safety Control
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Product Overview
The Schmersal SRB-E-201ST is a modular safety relay engineered for monitoring emergency stops, safety gates, and light curtains in industrial automation. Featuring a stainless steel housing (IP67 rated), this DIN-rail mountable device complies with ISO 13849-1 PL e (Category 4) and IEC 62061 SIL 3 standards. Its dual-channel architecture monitors safety devices with force-guided contacts to ensure reliable shutdown during faults. Operating at 24V DC, the relay integrates LED status indicators for power, fault, and output states. Designed for harsh environments (-25°C to +60°C), the corrosion-resistant housing withstands oils, vibrations, and humidity, making it ideal for automotive, material handling, and robotic applications requiring fail-safe control logic.
2. Key Technical Parameters
- Safety Ratings:
- PL e (ISO 13849-1 Cat. 4)
- SIL 3 (IEC 62061, PFHD: 2.3×10⁻⁹/h)
- Electrical Specifications:
- Supply Voltage: 24V DC (19.2–28.8V)
- Safety Outputs: 2× semiconductor (0.5A) + 2× relay (5A)
- Input Channels: 2 independent (S11/S12, S21/S22)
- Response Time: ≤100ms
- Mechanical:
- Dimensions: 45×105×121mm (W×H×D)
- DIN Rail Mounting: EN 60715
- Environmental:
- IP67 (IEC 60529)
- Shock Resistance: 30g (IEC 60068-2-27)
- Diagnostics:
- Tri-color LED indicators
- Fault memory storage
- Certifications:
- UL 508, CE, UKCA
- DNV-GL for marine applications
3. Primary Applications
This relay safeguards critical machinery:
- Press Brakes: Dual-channel E-stop monitoring with manual reset
- Robotic Cells: Safety gate interlocking with position verification
- Conveyor Systems: Light curtain integration for material handling
- Packaging Lines: Two-hand control systems for pouch fillers
- CNC Machining: Tool changer guard monitoring
- Automotive Stamping: Emergency stop cascading across press lines
- Plastic Injection: Mold area guard locking
- Assembly Stations: AGV docking zone safety
Its SIL 3 certification ensures compliance in automotive OEM facilities, pharmaceutical plants, and offshore platforms where redundant safety is non-negotiable.
4. Functional Advantages
- Diagnostic Intelligence:
- Green/red/yellow LEDs visualize circuit status
- Cross-fault detection between channels
- Installation Efficiency:
- Plug-in screw terminals (0.2–2.5mm²)
- 22.5mm module width saves panel space
- Safety Assurance:
- Force-guided contacts (EN 50205)
- Automatic startup test
- Flexible Configuration:
- Supports E-stop, guard door, light curtain inputs
- Configurable reset modes (auto/manual)
- Durability:
- Stainless steel housing resists corrosion
-
100,000 mechanical operations
- Compliance Ready:
- Pre-certified templates for ISO 13850
- SILCL 3 per IEC 61508
5. Safety Functionality
Dual-Channel Operation:
- Input Monitoring:
- Cross-compares S11/S12 and S21/S22 signals
- Detects contact welding within 50ms
- Startup Test:
- Validates contact separation upon power-up
- Prevents restart with undetected faults
- Output Control:
- Safety outputs (13-14/23-24) enable machine operation
- Auxiliary contact (31-32) signals faults
- Reset Logic:
- Manual reset via external button
- Auto-reset after fault clearance
- Fault Management:
- Forces outputs open during discrepancies
- Stores last 5 faults with timestamp simulation
Safety Response Times:
- Input fault → Output deactivation: ≤80ms
- Contact separation: Guaranteed ≥0.5mm
- Undervoltage lockout: Activates below 19V DC
| Parameter | Specification/Value |
|---|---|
| Product Type | Emergency Stop Pushbutton (Twist Release) |
| Series | SRB-E |
| Contact Configuration | 2 NC (Safety Contacts) + 1 NC/1 NO (Auxiliary) |
| Safety Category (EN ISO 13849-1) | Cat. 4 / PL e (EN ISO 13849-1) |
| Performance Level (PL) | PL e (EN ISO 13849-1) |
| Stop Category | Category 0 (Uncontrolled stop per EN 60204-1) |
| Enclosure Rating (IP) | IP65 (Front side), IP54 (Housing) |
| Rated Operating Voltage (Ue) | 24–240V AC/DC |
| Rated Current (Ie) | 10 A (AC-15), 6 A (DC-13) |
| Electrical Life | 100,000 cycles (at rated load) |
| Mechanical Life | ≥ 1,000,000 cycles |
| Actuator Type | Ø 40 mm Mushroom Head (Red/Yellow) |
| Actuation Force | ≥ 80 N (Meets ISO 13850) |
| Release Mechanism | Key-operated Twist Release |
| Contact Block Material | Thermoplastic (PA) |
| Housing Material | Zinc Die Cast (RAL 7035 Grey) |
| Contact Material | AgCdO (Silver Cadmium Oxide) |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Screw Clamp Terminals (Max. 2.5 mm²) |
| Mounting Style | Ø 22 mm Mounting Cutout |
| Approvals/Certifications | CE, UL 508, CSA C22.2 No.14, TÜV |
| Safety Standards | EN 60947-5-1, EN 60204-1, IEC 60947-5-1 |
| Self-Monitoring | Mechanically Linked NC Contacts |
| Actuator Locking | Key-Release Prevents Unauthorized Reset |
