PS315-Z11-K360 - Inductive PNP Switch - IP67 SS 36mm Industrial Proximity Sensor
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Spring-Return Safety Switch Overview

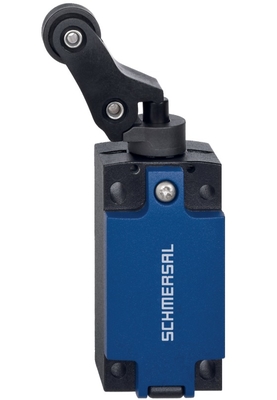

The Schmersal PS315-Z11-K360 is a heavy-duty safety limit switch engineered for high-reliability position monitoring in industrial automation. Featuring a spring-return roller lever actuator (Z11 suffix) with ±1.5mm repeat accuracy, this device ensures positive contact operation in safety-critical applications. Its zinc die-cast housing provides IP67 protection against dust, oils, and temporary immersion (1m depth/30 minutes). The "K360" designation indicates 360° rotatable mounting capability for flexible installation. Certified to ISO 13849-1 PL d (Category 3) and IEC 62061 SIL 2, it operates across 24-240V AC/DC within -25°C to +70°C environments. Force-guided silver-cadmium contacts (2NC + 2NO) handle 6A @ 250V AC loads, while the stainless steel roller lever withstands IK10 impacts (20J). Designed for press brakes, automated gates, and material handling systems, its 10-million-cycle rating ensures longevity in high-vibration industrial environments.
2. Key Technical Specifications
- Safety Ratings:
PL d (ISO 13849-1 Cat. 3) / SIL 2 (PFHD: 4.5×10⁻⁸/h) - Electrical:
Voltage: 24-240V AC/DC ±10%
Contacts: 2NC + 2NO (6A @ 250V AC)
Terminals: Screw terminals (0.5-2.5mm²) - Mechanical:
Actuator: Spring-return roller lever (Ø25mm)
Operating Force: 6-9N
Pretravel: 18° ±2° - Environmental:
IP67 (IEC 60529)
Temperature: -25°C to +70°C - Durability:
Mechanical Life: >10 million operations
Electrical Life: 100,000 cycles @ 6A resistive load - Certifications:
UL 508, IECEx Ex ec IIIC T70°C Dc
3. Industrial Machinery Applications
This switch excels in applications requiring positive-position detection:
- Press Brakes: Tool positioning and guard monitoring per ANSI B11.3
- Stamping Presses: Safety gate verification with anti-tie-down logic
- Material Handling: Conveyor emergency stop cord position feedback
- Robotic Workcells: Guard door interlocks for ISO 10218 compliance
- Hydraulic Power Units: Cover position monitoring
- Industrial Doors: Position feedback for rapid-roll doors
- Packaging Machinery: Jam detection on carton erectors
- CNC Machining Centers: Chip conveyor access security
The spring-return mechanism ensures immediate contact opening upon lever release, while IP67 protection maintains reliability in environments with coolant splashes or washdown cleaning.
4. Functional Advantages
- Spring-Return Mechanism:
Guaranteed contact opening within 50ms of lever release
Positive reset without manual intervention - Corrosion Resistance:
Zinc housing with chromate plating (500hr salt spray resistance)
Stainless steel roller (AISI 304) - Installation Flexibility:
360° rotatable housing for optimal cable routing
Tool-free actuator angle adjustment (±15°) - Electrical Reliability:
Silver-cadmium contacts prevent welding at 6A loads
Break capacity: 100,000 operations @ 230V AC - Vibration Resistance:
Over-center mechanism maintains contact position under 10g vibration
IGUS® polymer bushings absorb shock impacts - Safety Architecture:
Force-guided contacts (EN 50205 certified)
Cross-monitored NC/NO circuits - Maintenance Efficiency:
Tool-free contact block replacement
Self-lubricating pivot mechanism
5. Safety Operation & Construction
Mechanical Operation Sequence:
- Lever Engagement:
- Roller depressed (6-9N force) → NC contacts close within 15ms
- Position Locking:
- Over-center mechanism secures contacts against vibration
- Guard Opening:
- Spring forces lever return → NC contacts positively open
- Guaranteed contact gap ≥0.5mm
- Fault Protection:
- Welded contacts mechanically separated by cam mechanism
- Auxiliary NO contact provides position feedback
Construction Details:
- Housing:
ZnAl4Cu1 die-casting (ISO 301)
IK10 impact protection (20J) - Actuator:
Stainless steel roller shaft (Ø10mm)
Spring force: 15N ±2N - Contacts:
AgCdO alloy with 100,000 mechanical operations
Minimum switching: 10mA @ 5V DC
| Parameter Category | Specifications & Technical Details |
|---|---|
| Product Type | Type 4 Safety Light Curtain (ESPE) per IEC 61496-1/2 |
| Series | PS315 Long-Range Series |
| Detection Capability | Resolution: 360mm (K360) Number of Beams: 11 (Z11) Height: 315mm |
| Protective Field Height | 315mm |
| Operating Range | 0.5m to 20.0m (Industry-leading long-range detection) |
| Response Time | ≤ 60ms (Beam interruption to OSSD switching) |
| Output Signals | 2 OSSDs (PNP) - Safety-rated outputs (DC 24V, 500mA each) - Short-circuit protected |
| Safety Rating | PL e / Cat. 4 (EN ISO 13849-1) SIL 3 (IEC 62061) |
| Blanking Function | Fixed/Floating Blanking (Up to 3 beams) |
| Monitoring Inputs | 2 Safety Inputs (e.g., E-stop, mode selection) |
| Enclosure Rating | IP65 (Front face) IP54 (Housing) - Reinforced for dust/moisture |
| Voltage Supply | DC 24V (±15%) Current Consumption: ≤ 180mA |
| Optical System | High-Power Infrared LEDs (850nm wavelength) Synchronization: Optical or cable sync |
| Housing Material | Die-Cast Aluminum (EMC-shielded) Tempered Glass (Optical windows) |
| Connection | M12 x 1 Connectors (5-pin power/OSSDs + 8-pin auxiliary) |
| Ambient Light Immunity | ≤ 20,000 Lux (Resists sunlight/interference) |
| Operating Temperature | -25°C to +55°C (Extended industrial range) |
| Mounting | Precision alignment brackets Max. angular deviation: ±1.5° (for 20m range) |
| Approvals | CE, UL, cULus, TÜV, IEC 61496, EN ISO 13849-1, IEC 62061 |
| Diagnostic Functions | Beam-by-beam status LEDs - Fault memory via diagnostic tools |
| Vibration Resistance | 15g @ 10–150Hz (EN 60068-2-6) |
