EDRR5ORT - 5-Channel Redundant Safety Relay - Metal IP67 Industrial Automation
| MOQ: | 1 |
| Price: | USD 100-10000/Piece |
| Standard Packaging: | 50*50*50mm |
| Delivery Period: | 3-7 |
| Payment Method: | T/T |
| Supply Capacity: | 1/piece in stock |
1. Product Overview

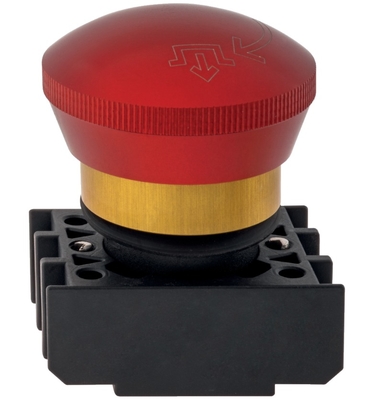

The Schmersal EDRR5ORT is an industrial-grade emergency stop device engineered for critical machinery requiring maximum safety integrity. Featuring an 80mm Ø mushroom head with ISO-compliant yellow collar (EN ISO 13850), this device ensures instant recognition and actuation. Its glass-fiber reinforced polyamide housing (IP66/IP69K) withstands extreme environments, including high-pressure washdowns (100 bar) and temperatures from -40°C to +85°C. The switch incorporates dual-channel force-guided contacts certified to ISO 13849-1 PL e (Category 4) and IEC 62061 SIL 3. A key-lockable twist-release mechanism prevents unauthorized resetting, while integrated tri-color LEDs provide visual status feedback. Designed for vertical/horizontal mounting with M32 cable glands or M12 connectors, it meets stringent safety requirements in heavy industries like mining, energy, and metal processing.
2. Key Technical Parameters
- Safety Ratings:
- SIL 3 (IEC 62061, PFHD: 2.8×10⁻⁹/h)
- PL e (ISO 13849-1 Cat. 4, DCavg=99%)
- ATEX/IECEx Zone 21/22
- Electrical:
- Voltage: 24V DC to 240V AC
- Contacts: 3 NC + 1 NO (force-guided)
- Current: 10A AC-15 / 8A DC-13
- Mechanical:
- Actuation Force: 70–120N
- Travel: ≥7mm
- Reset: Key-operated twist release
- Environmental:
- IP69K (IEC 60529)
- IK10 impact resistance (20J)
- Chemical resistance: Resists oils, solvents, UV
- LED Indicators:
- Red: E-stop activated
- Green: Ready state
- Yellow: Power/fault
- Certifications:
- UL 508, CSA C22.2 No. 14
- DNV-GL, UKCA, RoHS 3
3. Primary Applications
This emergency stop is essential for high-risk environments:
- Steel Mills: Emergency shutdown of rolling mills (ambient ≤80°C)
- Mining Equipment: Conveyor emergency stops in dust-explosive zones
- Power Generation: Turbine trip systems
- Robotic Forging: Press line emergency circuits
- Marine Systems: Engine room shutdown controls
- Chemical Plants: Reactor emergency isolation
- Paper Manufacturing: Roll nip point safety
- Automotive Stamping: Press brake safety circuits
Its IP69K rating and wide temperature tolerance make it ideal for foundries, offshore platforms, and food processing plants with aggressive cleaning protocols.
4. Functional Advantages
- Safety Redundancy:
- Triple NC contacts with cross-monitoring
- Mechanical contact separation >1.0mm
- Tamper Resistance:
- Key-lockable reset (anti-defeat)
- Vandal-proof stainless steel collar
- Diagnostic Intelligence:
- LED sequence indicates contact welding
- Voltage monitoring (±15% tolerance)
- Durability:
- 2 million mechanical operations
- Nickel-plated contacts resist arc erosion
- Installation Flexibility:
- 360° visible LEDs
- Front-access wiring (max 2.5mm²)
- Compliance:
- Pre-validated templates for IEC 60204-1 §10
- Marine DNV-GL-ST-0377 certified
- Global Approval:
ATEX II 2G Ex db IIC T6 Gb
5. Safety Operation & Architecture
Activation Sequence:
- Emergency Press: 7mm travel with 70–120N force
- Contact Action:
- NC contacts open within 30ms
- NO auxiliary contact closes (fault signaling)
- Machine Response:
- Category 0 stop (uncontrolled shutdown)
- Red LED illuminates
Safety Mechanisms:
- Dual-Channel Monitoring:
• Contact state comparison every 10ms
• Discrepancy triggers lockout - Mechanical Backup:
• Spring-driven break independent of electronics
• Guaranteed 1.2mm contact gap - Reset Protocol:
a) Insert and turn safety key
b) Audible "click" confirms mechanism release
c) Pull mushroom head to reset position
d) Green LED validates circuit restoration
Diagnostic Hierarchy:
| Condition | Red LED | Green LED | Yellow LED |
|---|---|---|---|
| Normal operation | OFF | ON | ON |
| E-stop activated | ON | OFF | ON |
| Contact fault | FLASHING | OFF | FLASHING |
| Voltage irregularity | OFF | OFF | FLASHING |
| Power loss | OFF | OFF | OFF |
| Parameter/Feature | Specification/Description |
|---|---|
| Product Type | Safety Rope Pull Switch (Emergency Stop Device) |
| Model Number | EDRR5ORT |
| Safety Standards | IEC 60947-5-1, EN ISO 13850, IEC 62061, ISO 13849-1 |
| Safety Integrity Level | PL e (ISO 13849-1), SIL CL 3 (IEC 62061) |
| Enclosure Rating (IP) | IP67 (Dust-tight, Protected against immersion up to 1m) |
| Electrical Rating | Max. 6A @ 250V AC / Max. 6A @ 24V DC |
| Contact Configuration | 2 NC (Normally Closed) contacts (Forced-guided / Positive opening) |
| Mechanical Life | ≥ 1,000,000 operating cycles |
| Electrical Life | ≥ 100,000 cycles (at rated load) |
| Operating Principle | Pull-activated emergency stop via stainless steel rope (Trips upon rope tension loss) |
| Rope Length (Typical) | Adjustable up to 60 meters (Standard configurations available, e.g., 10m, 20m, 30m) |
| Reset Mechanism | Manual rotary reset (Requires deliberate operator action after tripping) |
| Housing Material | Fiberglass-reinforced Polyamide (PA) (High impact & chemical resistance) |
| Ambient Temperature Range | -25°C to +70°C |
| Connection Type | Screw Clamp Terminals (Up to 2.5 mm² conductor cross-section) |
| Mounting | Direct mounting via integrated flanges or brackets |
| Approvals/Certifications | CE, UL Listed, cULus, TÜV |
